32" Kiosk Touch Screen with USB controller
used for multi touch screen kiosk
Structure:
1st layer: Cover lens--Thickness:2.0mm
2nd layer: UV glue--Thickness:0.2mm
3rd layer: ITO Glass--Thickness:1.1mm
Features:
1. Projected Capacitive touch screen
2. Customization
3. 3.5 inch to 65 inch(More large sizes products are developed now)
4. Multi touch point
5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
6. USB/IIC port
7. Low MOQ
Competitive advantages:
1. We have 23-year experience in designing and manufacturing touch panels.
2. We have strong research team for both software and hardware and provide before and after-sale service.
3. We cooperate with excellent customers and suppliers.
4. We have long-term cooperation with excellent IC suppliers all over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.
Delivery time:
Sample: 10-15 working days
Mass production:
1.Small sizes(smaller than 12.1 inch): 18 working days.
2.Large sizes(larger than 12.1 inch):20-25 working days.
Capacitive Touch Screen:
Capacitive touch screen is very different with traditional resistive touch screen. When the resistive touch screen works, you can only judge a touch point. And if there are two or more touch points, you can not make the right judgments. So the resistive touch screen applies only to judge a few simple actions such as click, drag and drop. The capacitive multi-touch screen can decompose the user's touch into colleting multi-point signal and determining the significance of the signals, and complete the judgments of complex action. Moreover, you can feel it when you lightly touch the projected capacitive touch sensor panel. Better durability, more than 90% light transmission rate, high transparency than the traditional resistive touch screen are the advantages of our products.
Product parameters:
| Size: | 32inch |
| Total Thickness: | 3.3±0.3mm |

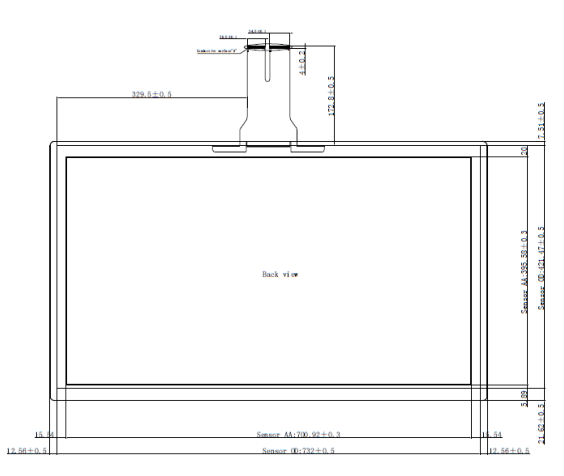

| Outline of Cover Lens | 757.12*450.6±0.5mm |
| Outline of ITO Sensor | 732*421.47±0.5mm |
| Viewing Area | 699.4*393.84±0.3mm |
| Active Area | 700.92*395.58±0.3mm |
| Interface | USB |
| Input voltage | 5V |
| Response time | 10ms |
| Report rate | 100 HZ |
| Input method | Hand writing or capacitive pen |
| Transmittance | ﹥85% |
| Package list | 32 inch touch panel, controller board and USB cable
|
